Home Forums Bows and Equipment mount and align broadheads: a how to vid

Viewing 16 reply threads
  • Author
    Posts
    • Clay Hayes
      Member
      Post count: 418

      Another little vid to follow up on the beer bottle arrow straightener. Rollerblade broadhead aligner…

    • Bruce Smithhammer
      Post count: 2514

      Another great little vid, Clay. I’ll have to keep an eye out at the local thrift store for a pair of roller blades.:wink:

      I’m getting a hankering to build some woodies soon…

    • Col Mike
      Member
      Post count: 911

      Clay

      You add new meaning to “innovation”. I think I want to be lost on a deserted island with you on the team.:D

      Great video–again!

      Mike

    • David Coulter
      Member
      Post count: 2270

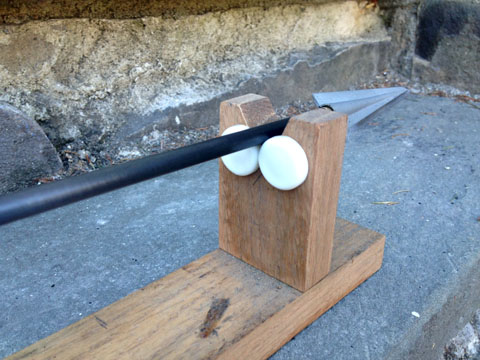

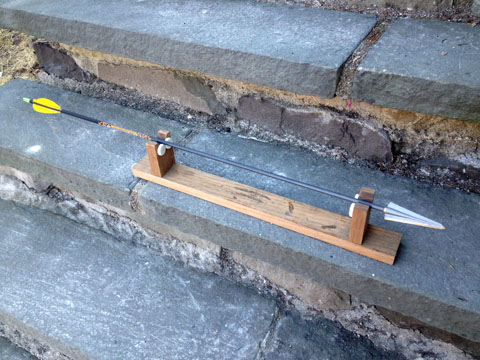

      Clay, very nice, as usual! I’ll throw in a variation of that system, but with not moving parts. The disks are nylon skids that you put under furniture legs. Works just dandy. If the point of the head isn’t exactly right on, usually a quarter turn or so puts it where it needs to be. Thanks! dwc

      attached fileattached fileattached file
    • Fallguy
      Member
      Post count: 317

      I have used my cresting machine in the past to check shaft straightness and broadhead aliment. Nice video Clay.

    • Stephen Graf
      Moderator
      Post count: 2371

      That is snazzy! Can’t see paying what they ask for the store bought version…

      But then I just spin the arrows in my palm (field points) or on the work bench (broad heads) and that tells me what I need to know.

      First thing I do after mounting the head is wipe off the excess glue before it has time to cool. Then check the straightness, then dip the point in water.

    • Jason Wesbrock
      Member
      Post count: 762

      You can make a spin tester with a scrap piece of wood and four nails. Drive two nails corssing each other (to form a pair of Xs) in each end of the wood. Set your arrow on the crossed nails and spin. Nothing to it.

    • Ptaylor
      Member
      Post count: 579

      Steve Graf wrote: That is snazzy! Can’t see paying what they ask for the store bought version…

      But then I just spin the arrows in my palm (field points) or on the work bench (broad heads) and that tells me what I need to know.

      First thing I do after mounting the head is wipe off the excess glue before it has time to cool. Then check the straightness, then dip the point in water.

      Why do you dip it in water?

    • Jason Wesbrock
      Member
      Post count: 762

      Ptaylor wrote: [quote=Steve Graf]That is snazzy! Can’t see paying what they ask for the store bought version…

      But then I just spin the arrows in my palm (field points) or on the work bench (broad heads) and that tells me what I need to know.

      First thing I do after mounting the head is wipe off the excess glue before it has time to cool. Then check the straightness, then dip the point in water.

      Why do you dip it in water?

      The water cools the glue and locks the head in place.

    • Stephen Graf
      Moderator
      Post count: 2371

      Yep. And even though I am careful to not heat the point up too much, I figure the fast cooling (quenching)in water might harden the edge a bit if the heating annealed it some…

      Also, I noticed Clay put the glue on the point and then pressed it onto the shaft. I do the opposite. I put the glue on the wood, and then press the heated point onto the shaft while rotating to get the glue evenly spread around.

      Just goes to show yet again that there is more than one way to skin a cat…

    • skinner biscuit
      Member
      Post count: 250

      I really like the Dixon broad head alignment tool.What sets it apart is the magnet for the tip.Any slight deviation and you will see it clearly.I don’t think their available anymore,and if I was to make one I would add the magnet.

      attached fileattached file
    • David Coulter
      Member
      Post count: 2270

      What does the magnet do? Dwc

    • Vintage Archer
      Member
      Post count: 276

      The Dixon Broad Head aligner is/was a great tool it is no longer made. 😥

      The magnet has a alignment hole in its center.The point of the broad head is placed in the hole and when the shaft is rotated the magnet would show movement when the broad head is out of alignment.

      I sold out last year .Those that own one have a nice tool. That only advantage over others is misalignment is magnified

      Skinner sorry did not mean to steel your post:D:cry::cry:

    • skinner biscuit
      Member
      Post count: 250

      No problem Joe!:D

    • grumpy
      Member
      Post count: 962

      CLAY how many times have you hit your head on that brush you have hanging over the workbench?

      I just spin between my palms, and look for head wiggle. and if there IS a wiggle in the head it will be magnified in the butt.

    • David Coulter
      Member
      Post count: 2270

      Grump, don’t you mean, if there’s a wiggle in the butt…?

    • Ralph
      Moderator
      Post count: 2554

      😀 There’s a giggle in that wiggle!:D
