Outserts for skinny shafts

[Munsterman]

#6711

My son is 14 and has taken quite a shine to the bow and bowhunting. Only problem is he has a very short DL and therefore it’s tough for him to generate a whole lot of “umph” (I think that’s the technical term). My thought was to go to a “skinny” shaft like the VAP’s or Carbon Flash(es), with plenty of FOC and a sharp COC head like the Grizzly.

Problem is Carbon Flashes have NO sort of broadhead attachment system and the VAP’s , in my opinion, is ,well, let’s say less than desirable.

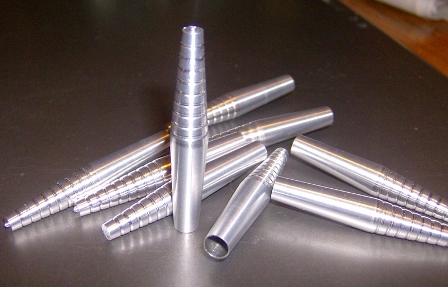

So I came up with my own solution….

The aluminum ones weigh in at 48 grs. the brass at 165 grs. I made a test arrow a while back and figure that with his 24″ arrows, he’d need 238 grs. up front to give him a 32% FOC and a 410 gr. arrow out of his 40# bow. These ought to work out just about right.

I thought you folks might appreciate something like this, so I thought I’d post it up.

[Munsterman]

#53977

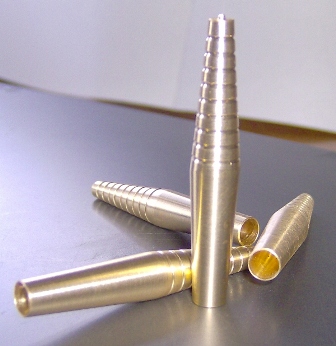

Brass outserts…

[handirifle]

#54377

I thought I posted a reply before, but I guess not. Excellent work. Did youndo those on manual lathe or CNC?:x

[Troy Breeding]

#54832

Now that would be sweet as peach pie to have 32% UEFOC coming out of a 40# bow. Should connect with a heck of a thump.

Troy

[Munsterman]

#54848

handirifle wrote: I thought I posted a reply before, but I guess not. Excellent work. Did youndo those on manual lathe or CNC?:x

they were done on a CNC.

Troy, I thought the same thing. It also eliminates the typically weak hinge point that the factory inserts for these shafts have.

[handirifle]

#54978

Do you have a CNC or did you hire it out? Do shops do small jobs like that? I have other ideas.

[Munsterman]

#55118

I’m a machinist and the shop I work at allows us to do projects like this if the machines aren’t tied up. Really, for something like this, it would cost someone a fortune to come in with a small order for parts like this. The programming and set-up time alone would kill you before a part was made. I did the programming and set up on my own time (it was for my kid – priceless).

[handirifle]

#55147

Yea I hear ya. I have a small lathe, but I am NOT a machinist. Have made a few archery items of my own, but it’s time consuming. Not a huge deal on the time, but repeatability is the tricky part for me.

[Leo Carrisalez]

#63662

Munsterman wrote: Brass outserts…

Tell me you have this patented. Brother I’m sure there is a mess of archers that would buy this. Let us know the results on penetration and flight. This IS the solution for my little girl. I hope to see pics of your son’s first harvest with these bad boys.

[Munsterman]

#8640

South Texas wrote: Tell me you have this patented.

Actually, no.

South Texas wrote: Brother I’m sure there is a mess of archers that would buy this. Let us know the results on penetration and flight. This IS the solution for my little girl. I hope to see pics of your son’s first harvest with these bad boys.

We’ve got some mounted but just haven’t tested them yet. I have skinny shafts from 750 up to 500 spine and everything in between. We’ll be testing this weekend for sure and maybe sooner….will keep you posted.

[David Petersen]

#9710

FOC is important, but if he plans to hunt deer with these arrows, overall weight is more important. Just saying not to sacrifice overall weight in a quest for FOC. Of course, if you can get good overall weight and most of it’s up front, even better. I killed my first whitetail as a teen with a 42# recurve, cedar shafts and 130-grain two-blade (Bears with bleeder blades removed) and got good penetration. I have no idea what arrow weight or FOC were. 😆

[Munsterman]

#9917

David,

We’ve kinda set the top limit at 425gr. I know that’s not very much, but this is 40 #’s with a short draw. We’ve tried that and heavier. When he shoots heavier, the trajectory is prohibitively rainbow-like. It just so happens it’s relatively easy to get that arrow weight and high FOC when the shafts are short like his.
