        I’ve always admired the St. Charles back quiver so once I found a good picture of an original I decided to make my own version.

        I gathered my materials that I had on hand. A scrap of 0.50 aluminum sheet, a ¼” thick by 2-1/2” slat of maple, some leather and leather thongs, a carpet scrap, and some closed cell foam.

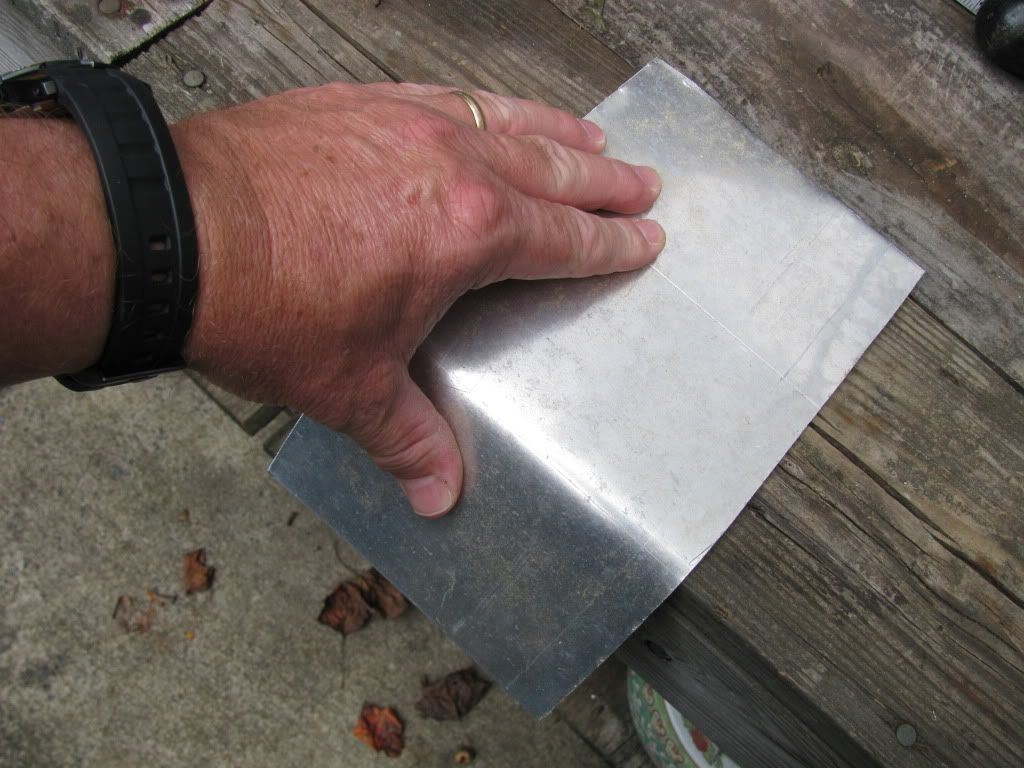

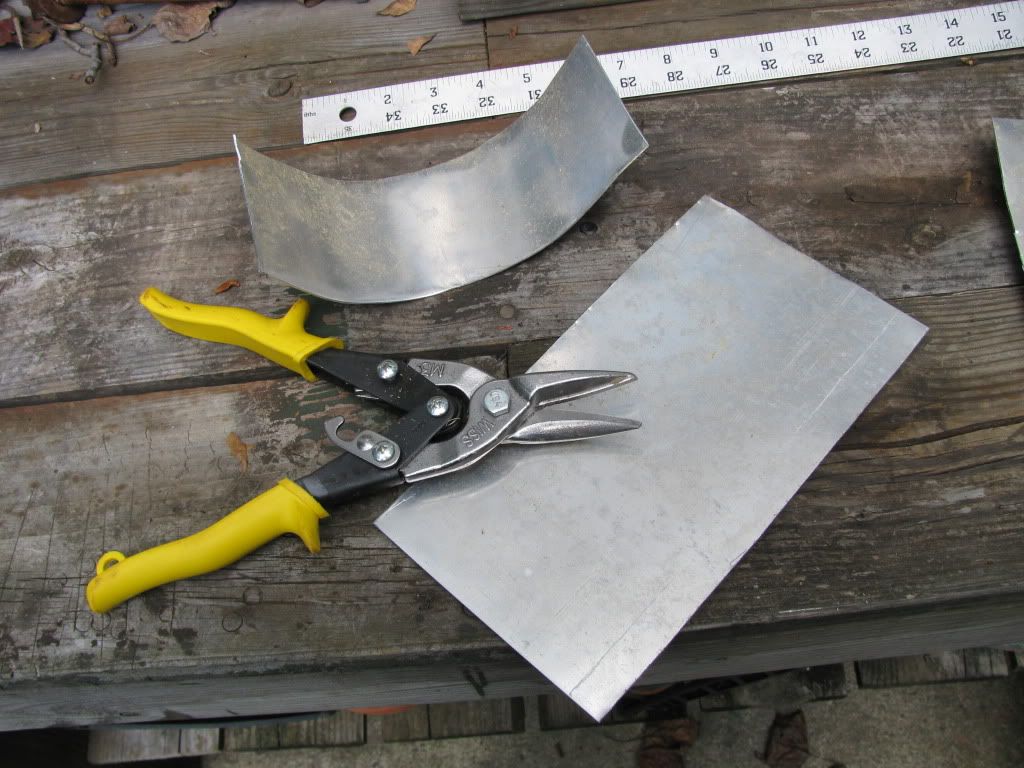

        I started by cutting out and bending the aluminum parts

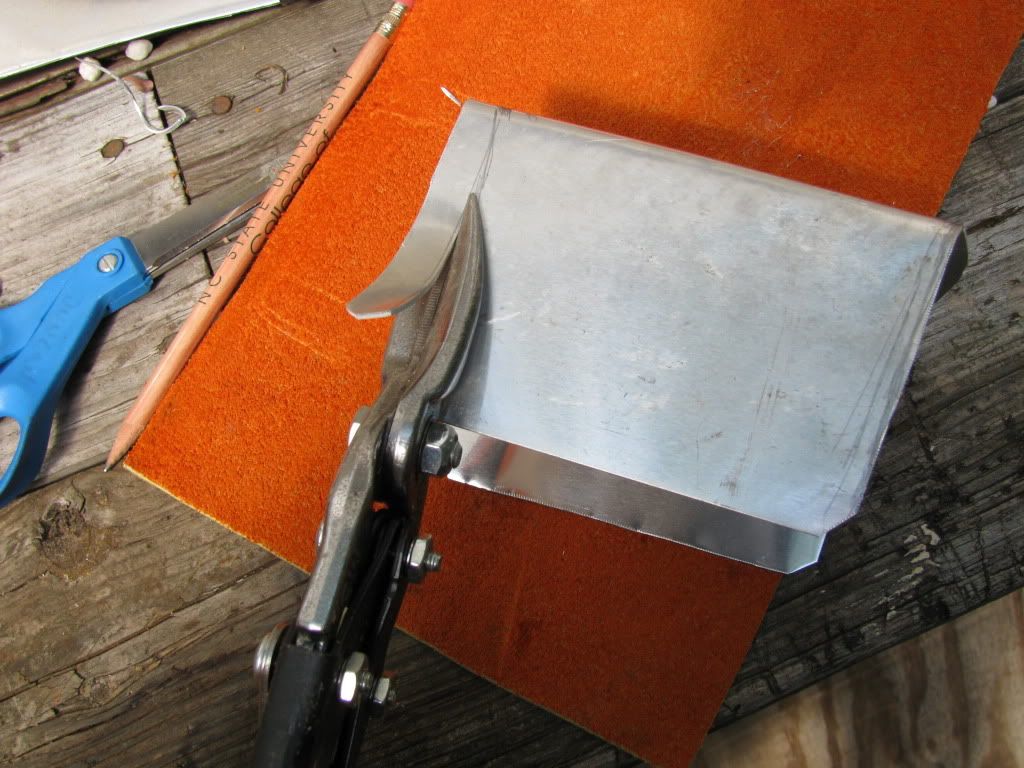

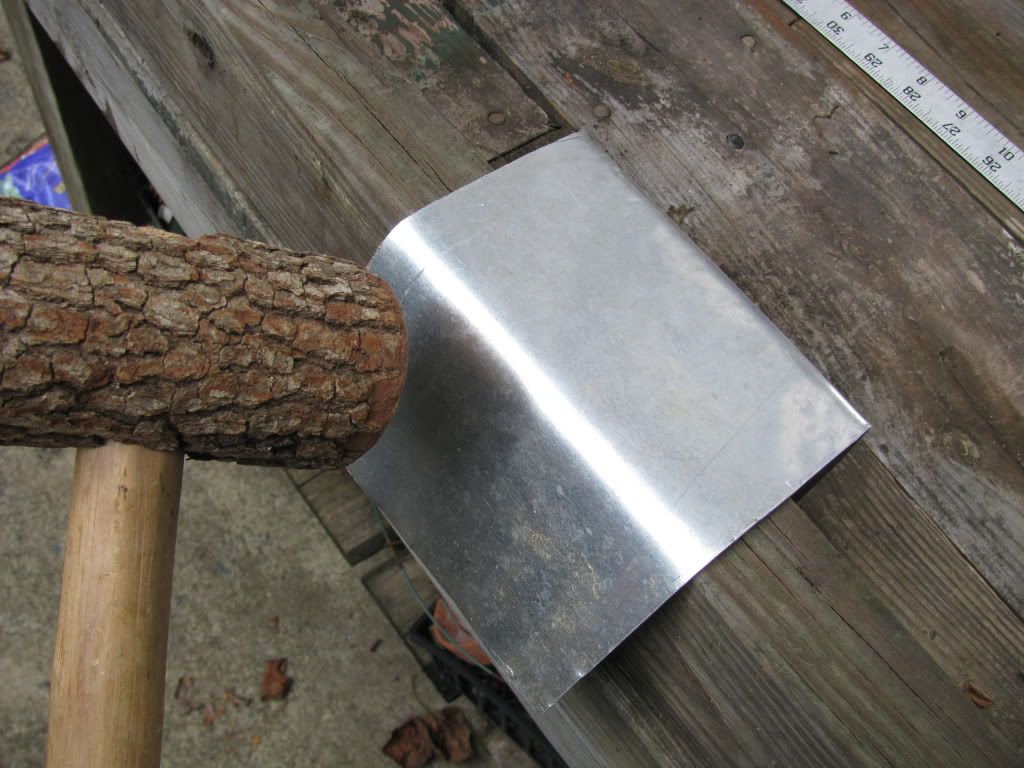

        Trim the top like this:

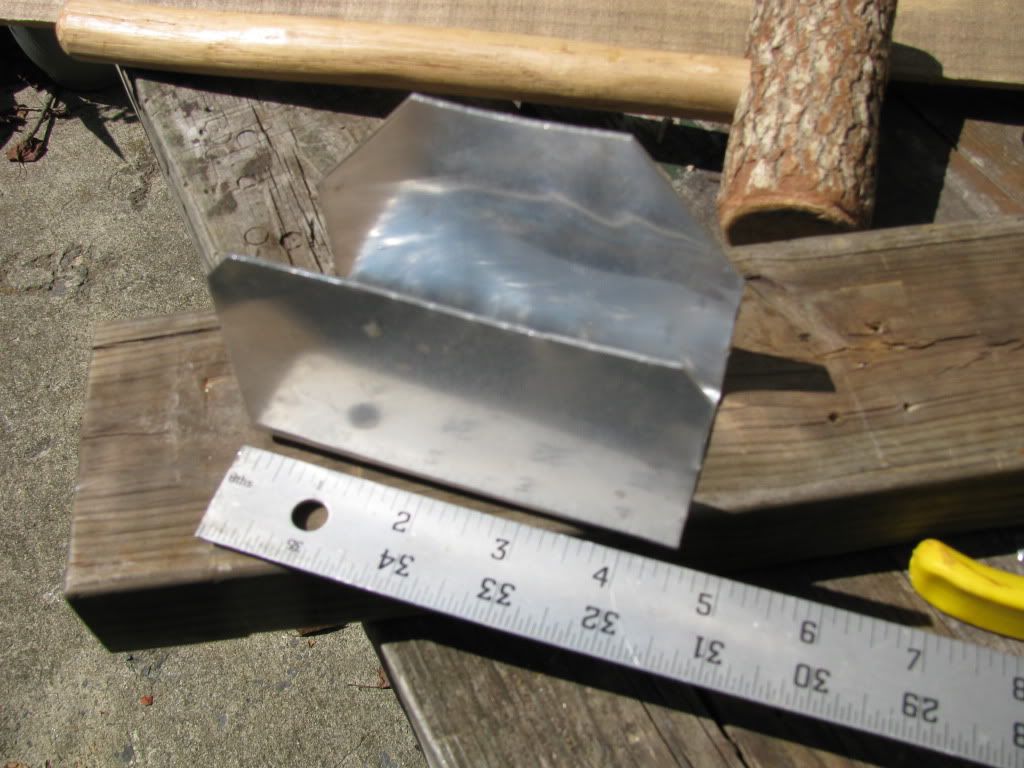

        And the bottom like this

        Now determine the slat length using an arrow you plan to use in the quiver

        I decorated mine by burning stripes on it and the sealing it with polyurethane

        Next:

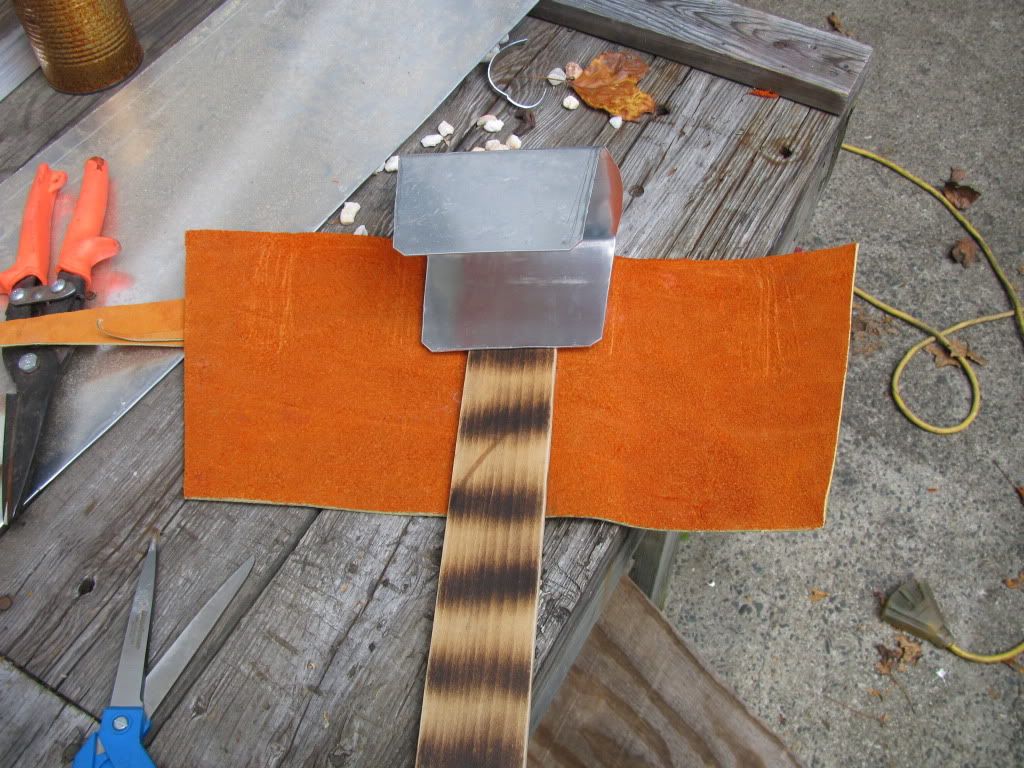

        Adding the leather hood and finishing the aluminum carrier

        Pick out the leather you want to use. You need the heaviest you can find so it will keep its shape.

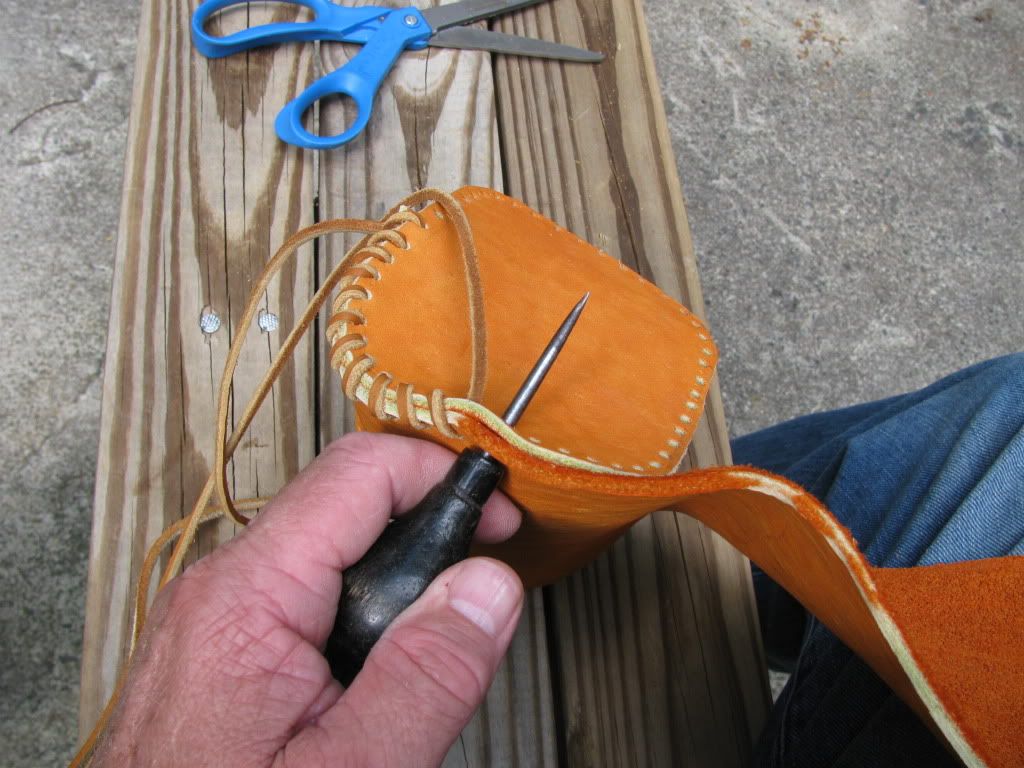

        Use a hole puncher to punch an equal number of holes

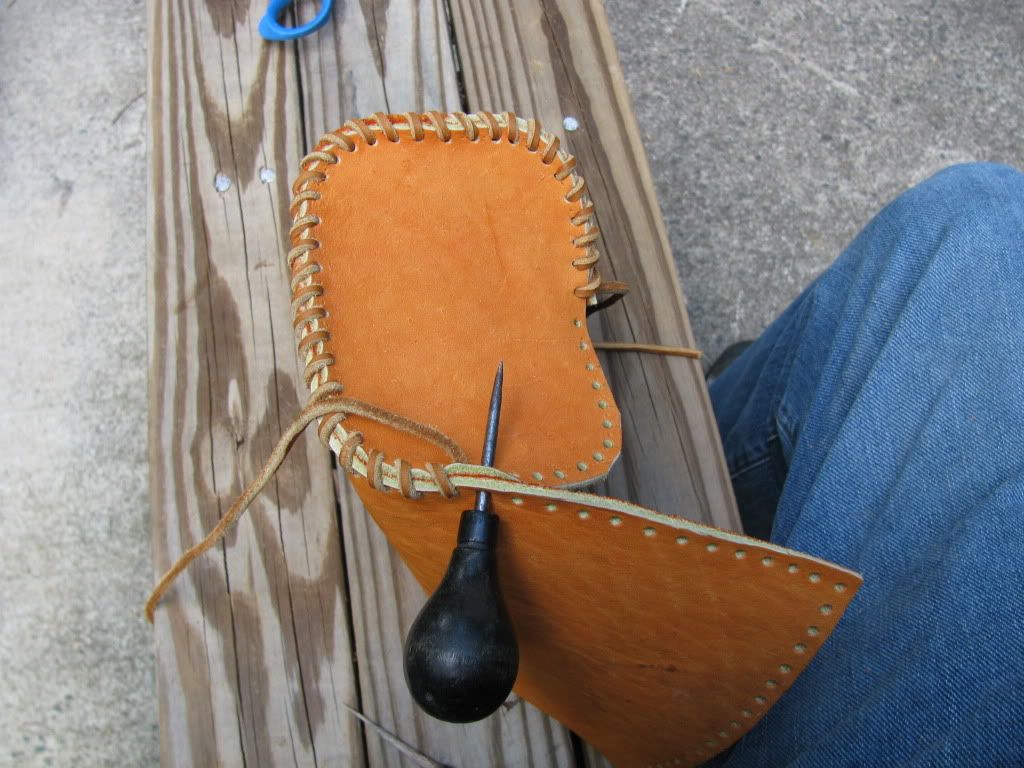

        A punch will help with alignment

        Now fit your closed cell foam

        And close things up

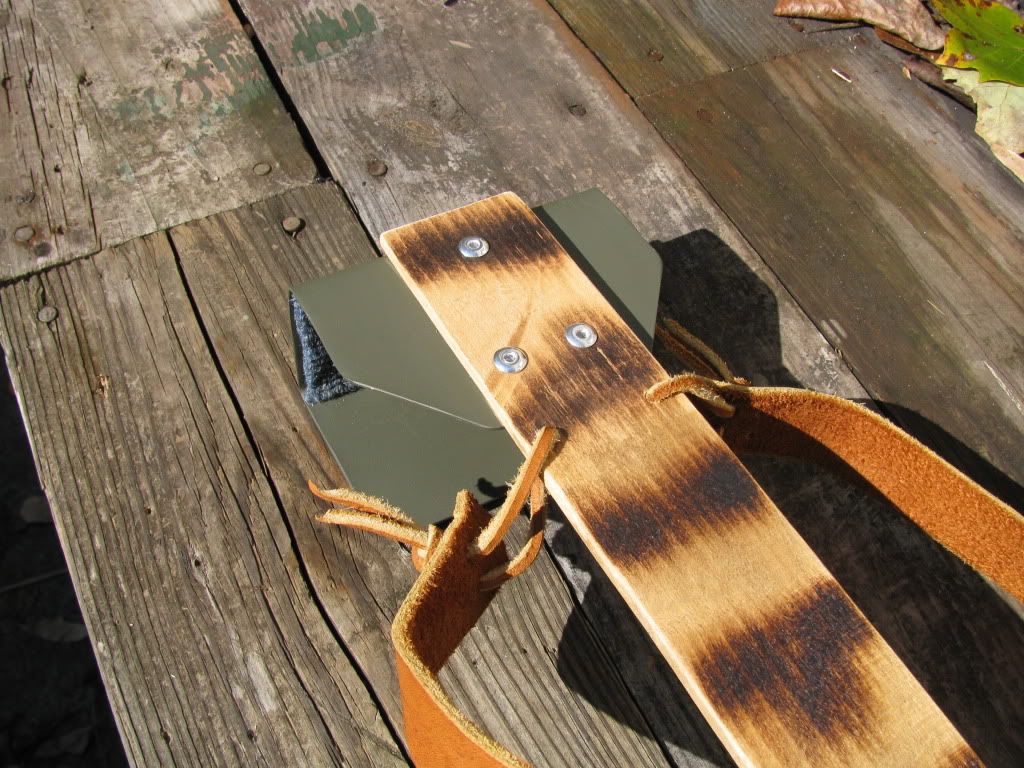

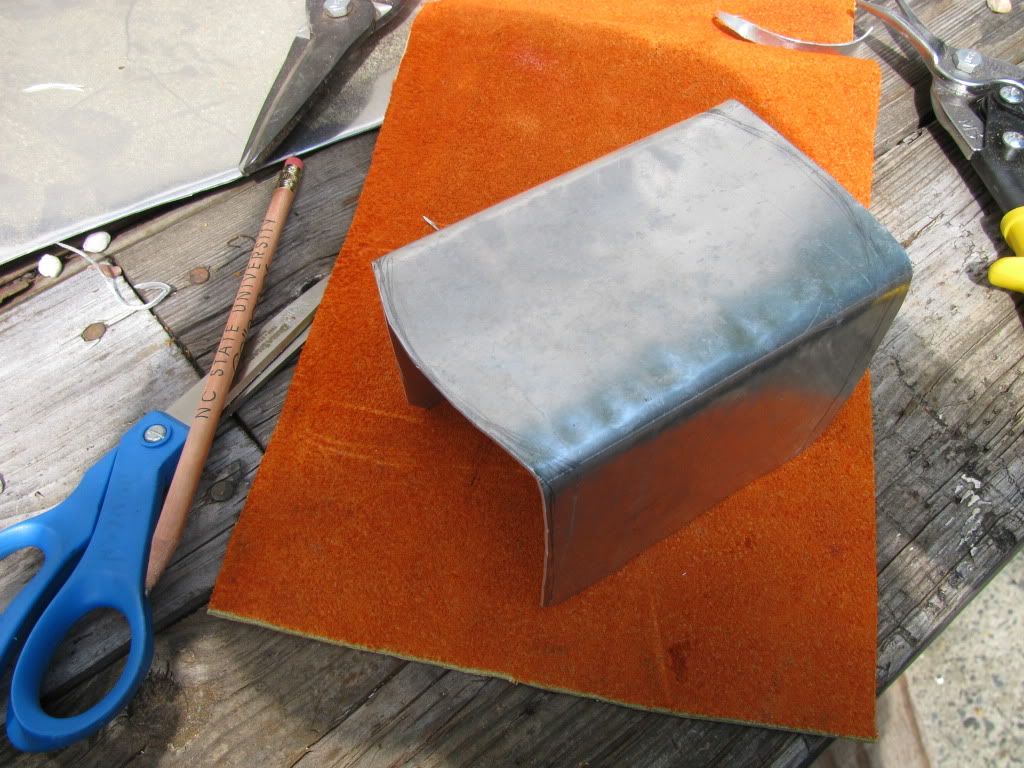

        I attached my aluminum with pop rivets

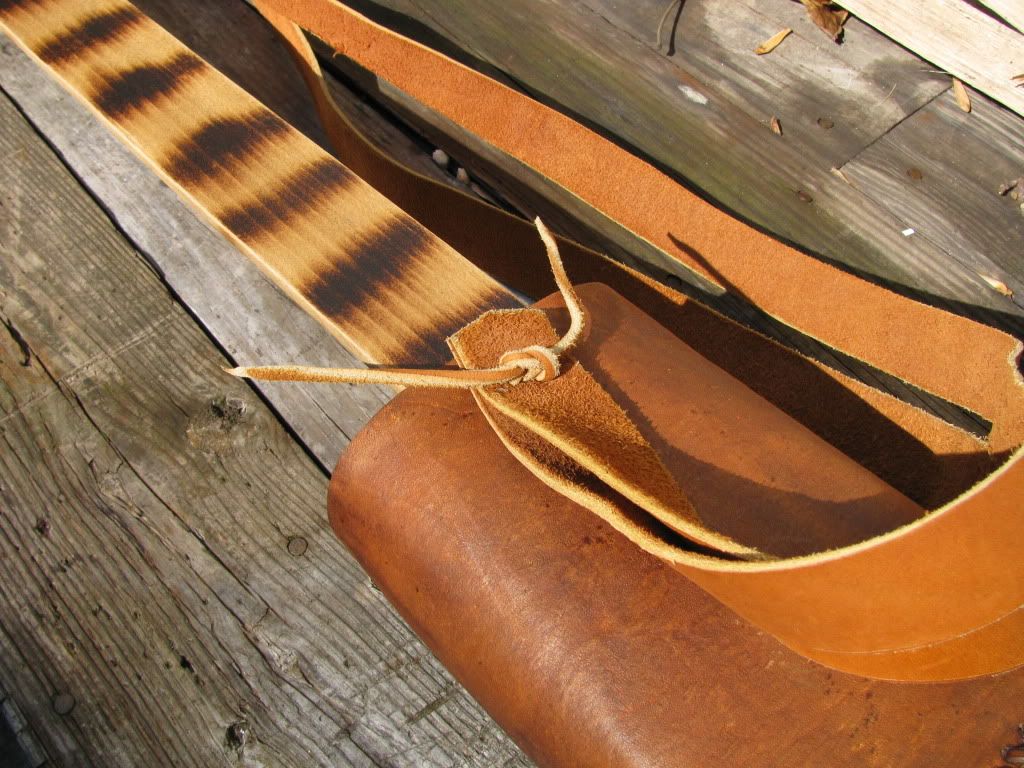

        I used crushed walnut hulls to darken the leathers color and Snow Seal to seal it

        Krylon to paint the carrier

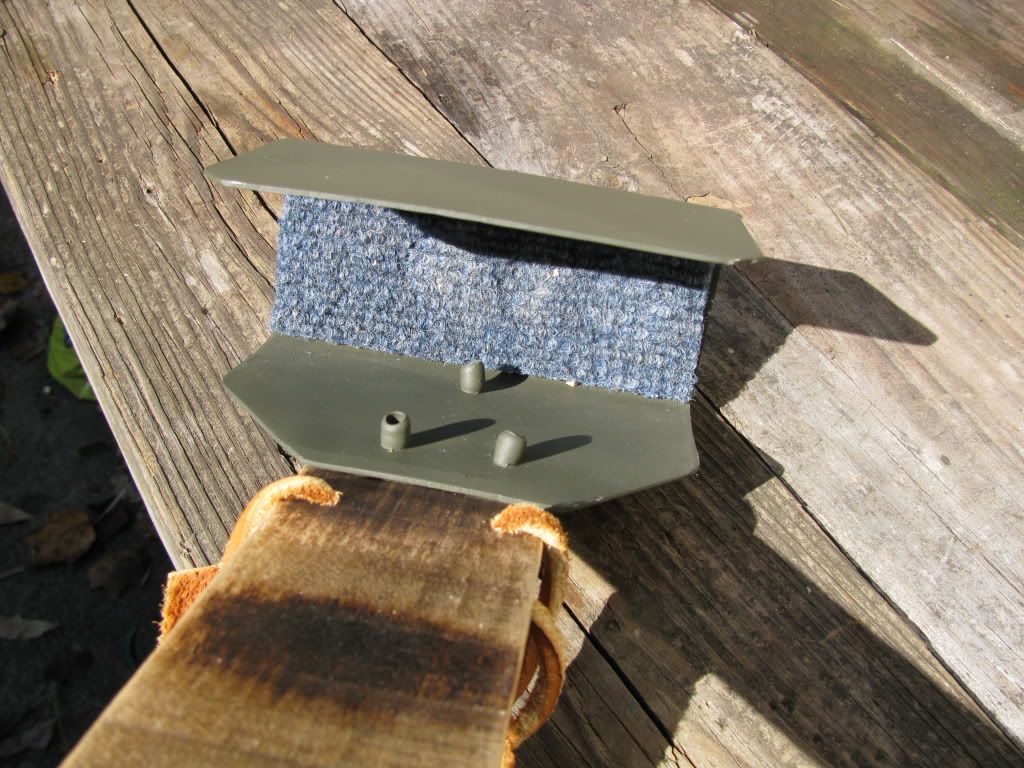

        The carpet scrap holds and protects the tips of your broadheads

        Drill some holes and attach the shoulder straps

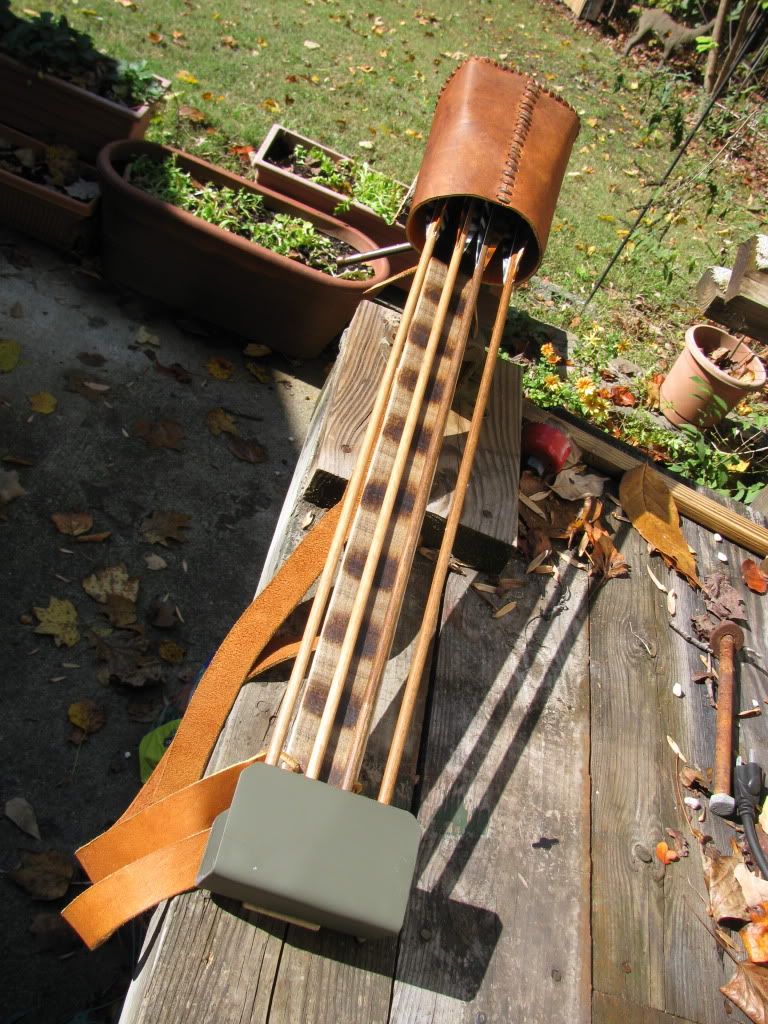

        The finished product, ready for the hunt

        Very comfortable to wear
